Diamond Child Extraction Forceps Kit, 7pcs | Diamond Child Extraction Forcep | ErgoDenta
5020
Diamond Child Extraction Forcep for diamond child extraction forceps kit, 7pcs.
| Brand: ErgoDenta |
| Choose Your Handle: English Pattern |
ErgoDenta
Designed in Denmark — ergonomic dental hand instruments built for comfortable, efficient daily clinical work across diagnostics, restoration, periodontics, surgery and sterilisation.
Explore the ErgoDenta range →Website Product Category :
Diamond Child ForcepsTags :

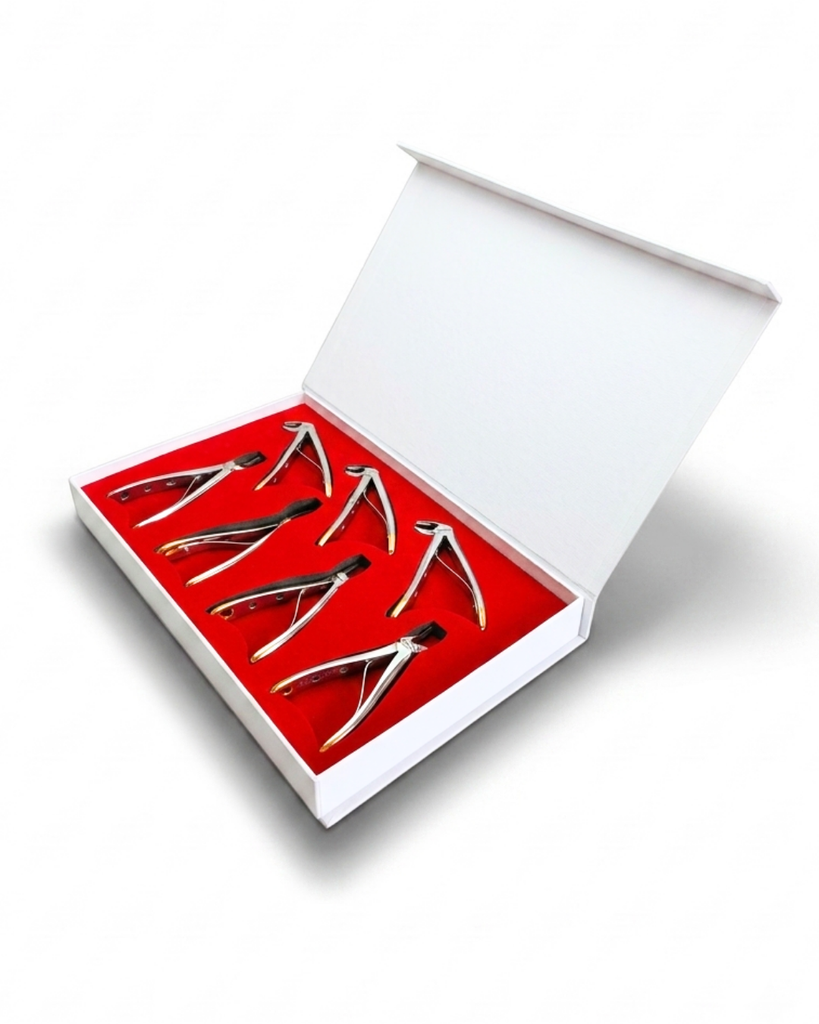

Diamond Child Extraction Forceps Kit — seven pediatric forceps with diamond-coated beak surfaces for a secure grip with less squeeze force.
What's inside

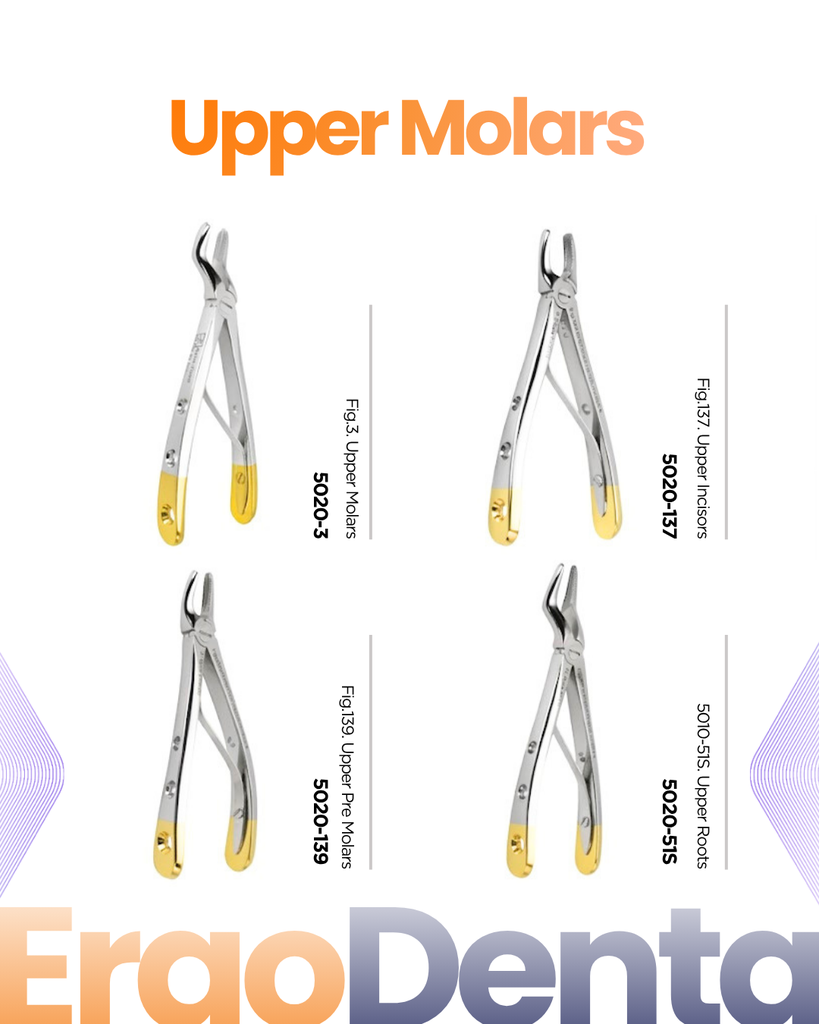

- 5020-3 — Fig. 3 — Upper Molars (Diamond)

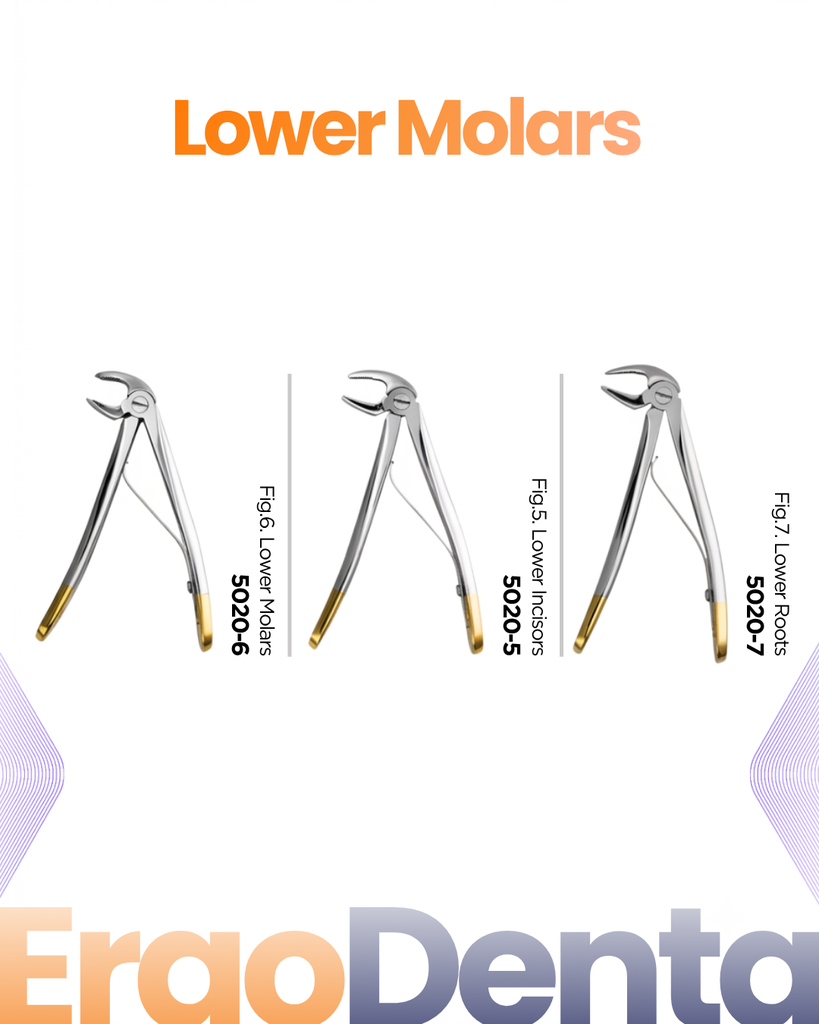

- 5020-5 — Fig. 5 — Lower Incisors (Diamond)
- 5020-6 — Fig. 6 — Lower Molars (Diamond)
- 5020-7 — Fig. 7 — Lower Roots (Diamond)
- 5020-51S — Fig. 51S — Upper Roots (Diamond)
- 5020-137 — Fig. 137 — Upper Incisors (Diamond)
- 5020-139 — Fig. 139 — Upper Premolars (Diamond)
7 forceps per kit
Specifications
- Article #: 5020
- Contents: 7 forceps per kit
- Material: Surgical stainless steel
- Sterilization: Autoclavable, all standard cycles
Reprocessing Instructions
Important: ErgoDenta instruments are supplied NON-STERILE and must be cleaned, disinfected, and sterilized before first use and after each subsequent use.
Step 1
Pre-Cleaning
Rinse under cold running water immediately after use. Remove visible debris with a soft brush. Keep instruments moist until processing.
Step 2
Automated Cleaning
Washer-disinfector: pre-rinse cold, enzymatic wash 55°C/10 min, thermal disinfect 90°C/5 min, dry.
Step 3
Inspect & Maintain
Check for residual soil, corrosion, or damage. Lubricate hinged instruments with medical-grade lubricant.
Step 4
Package
Place in ISO 11607-compliant sterilization pouches or wraps. Arrange to prevent tip contact. Seal properly.
Step 5
Sterilize
Autoclave at 134°C (273°F) for min. 18 minutes, pre-vacuum cycle. Validate with chemical and biological indicators.
Step 6
Store
Store in a clean, dry, enclosed area. Verify packaging integrity before use. Re-sterilize if compromised.

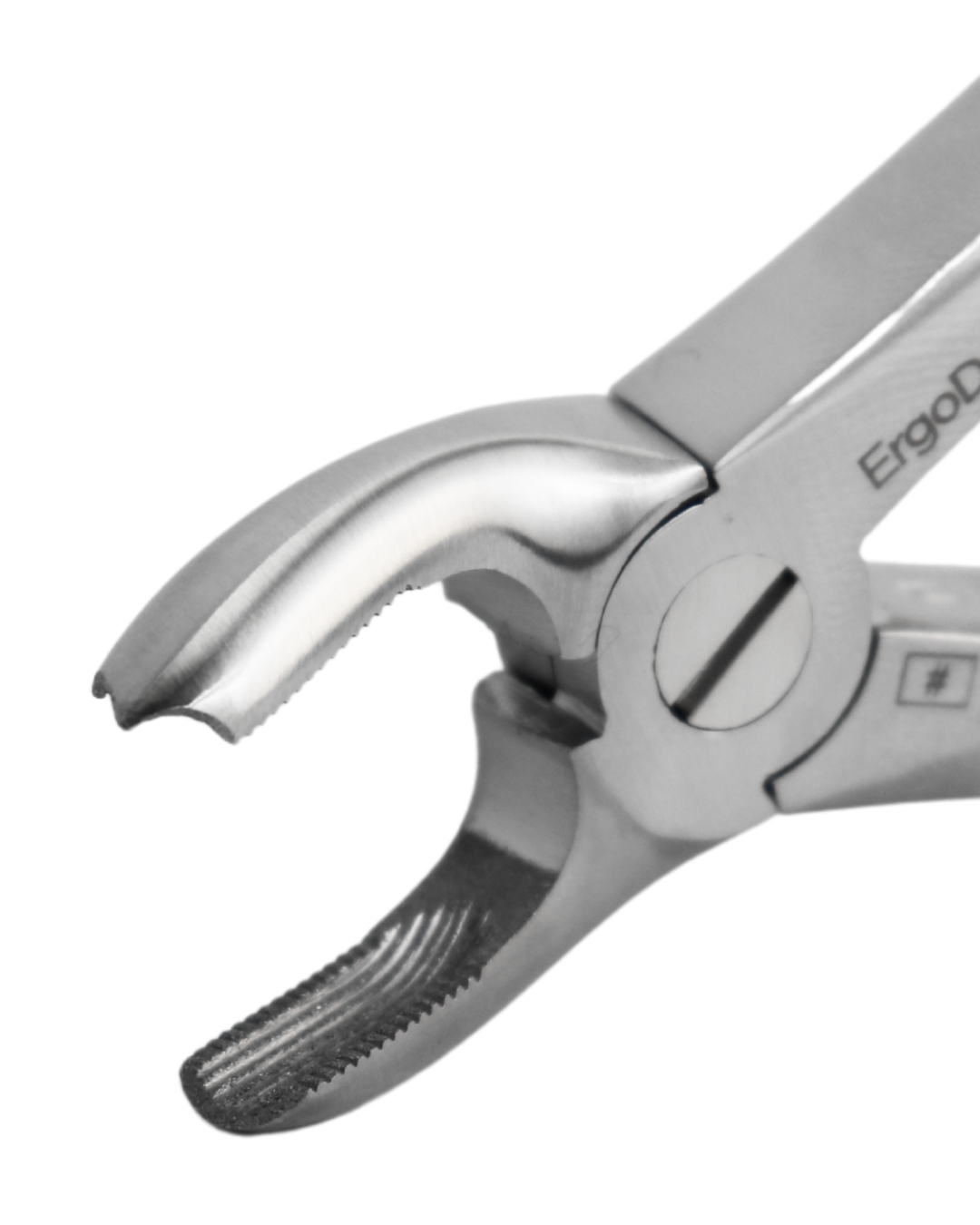

Diamond tip with a
serrated pattern ensures a strong grip.
