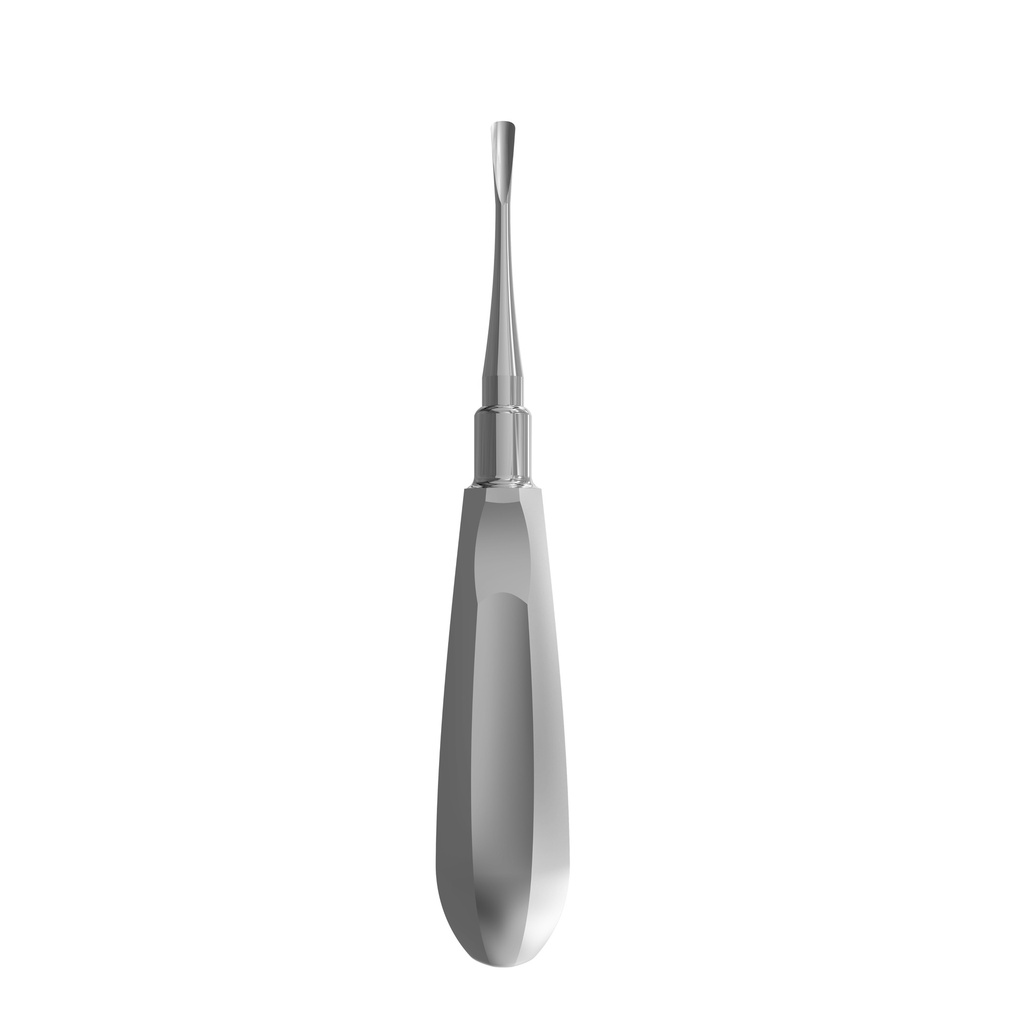

Luxating Elevator, Curved | ErgoDenta
6002-8
Luxating Elevator, Curved for luxating teeth and roots before extraction.
| Brand: ErgoDenta |
ErgoDenta
Designed in Denmark — ergonomic dental hand instruments built for comfortable, efficient daily clinical work across diagnostics, restoration, periodontics, surgery and sterilisation.
Explore the ErgoDenta range →Website Product Category :
Luxating ElevatorsTags :
The Luxating Elevator, Curved is a luxating elevator for severing the periodontal ligament and luxating teeth and roots before extraction. Its sharp, controlled working tip transmits force precisely while protecting bone.
- Designed for severing the periodontal ligament and luxating teeth and roots
- Sharp, controlled tip for precise force
- Lightweight, balanced ErgoDenta handle reduces hand fatigue
| Sizes / tip | — |
| Handle options | — |
| Sterilisation | Fully autoclavable |
| Supplied | Non-sterile |
| Brand line | ErgoDenta |
Reprocessing Instructions
Important: ErgoDenta instruments are supplied NON-STERILE and must be cleaned, disinfected, and sterilized before first use and after each subsequent use.
Step 1
Pre-Cleaning
Rinse under cold running water immediately after use. Remove visible debris with a soft brush. Keep instruments moist until processing.
Step 2
Automated Cleaning
Washer-disinfector: pre-rinse cold, enzymatic wash 55°C/10 min, thermal disinfect 90°C/5 min, dry.
Step 3
Inspect & Maintain
Check for residual soil, corrosion, or damage. Lubricate hinged instruments with medical-grade lubricant.
Step 4
Package
Place in ISO 11607-compliant sterilization pouches or wraps. Arrange to prevent tip contact. Seal properly.
Step 5
Sterilize
Autoclave at 134°C (273°F) for min. 18 minutes, pre-vacuum cycle. Validate with chemical and biological indicators.
Step 6
Store
Store in a clean, dry, enclosed area. Verify packaging integrity before use. Re-sterilize if compromised.
