Anterior matrix systems — sectional vs Tofflemire for composite
The matrix system you choose decides whether your composite has a tight contact, a smooth contour, and a clean margin. Sectional, Tofflemire, celluloid strip — here's how to pick the right one.
A great composite restoration needs three things: a tight interproximal contact, a smooth axial contour, and a clean cervical margin. The matrix system is what makes those three things achievable. Get the matrix wrong and even the most carefully placed composite will produce open contacts, overhangs, and ledges. Get it right and the composite shapes itself. ErgoDenta carries matrix bands, retainers, sectional kits and 137 composite filling instruments to support the full restorative workflow.
Three matrix families — when each wins
- Sectional matrix systems — pre-shaped contoured metal bands held in place by a tension ring. The ring separates the teeth slightly, ensuring a tight interproximal contact. Best for posterior Class II composite.
- Tofflemire (universal) matrix — flat or contoured metal band tightened around the entire tooth via a Tofflemire retainer. Best for posterior Class II amalgam and large multi-surface composite.
- Celluloid strip / Mylar matrix — clear plastic strip held by hand or with a small wedge. Best for anterior Class III, IV and V composite where the matrix needs to be transparent for light-curing through it.
Sectional matrix — the posterior composite gold standard
The sectional matrix system has become the dominant choice for posterior Class II composite for one reason: it produces a tight interproximal contact more reliably than any flat band system.
The mechanism is simple. The pre-shaped sectional band has a contour that mimics the natural tooth's interproximal anatomy. The tension ring (BiTine, Palodent, Composi-Tight, etc.) sits between the adjacent teeth, separating them slightly. When the composite is placed and cured, the band's contour creates a natural interproximal embrasure, and the inter-dental separation closes back as the ring is removed — leaving a tight, anatomically correct contact.
Used with a wedge (wood or plastic) to seal the cervical margin and stabilise the band, the sectional system delivers consistently better contacts than Tofflemire alone.
Chapter 3Tofflemire — still relevant
The Tofflemire universal matrix retainer is still the workhorse for several specific situations:
- Multi-surface restorations (MOD) — the band wraps the entire tooth, sealing both proximal contacts simultaneously.
- Amalgam restorations — the heavier band stands up to the condensation forces required for amalgam.
- Large defects — when the cusp is missing or the cavity extends beyond the proximal box, the wrap-around design provides full circumferential support.
- Pediatric primary molars — the simpler placement suits the shorter procedure time of pediatric work.
For routine single-surface posterior composite, Tofflemire is being displaced by sectional systems. For multi-surface and amalgam work, it remains the right choice.
Chapter 4Celluloid strip / Mylar matrix — the anterior choice
For anterior Class III, IV and V composite restorations, you need a matrix you can light-cure through. Metal bands block light; clear celluloid (Mylar) strips don't.
The technique:
- Cut a 5-7 cm length of celluloid strip (or use pre-cut tabs).
- Insert between the teeth before composite placement.
- Position the strip behind the cavity, leaving the access face exposed.
- Place composite, light-cure through the strip.
- Pull the strip out interproximally — the cured composite has a glossy, smooth contoured surface.
For Class V cervical lesions, the strip can be held in place by a Class V matrix retainer or simply hand-held while the operator places and cures the composite.
Chapter 5ErgoDenta's restorative support range
The matrix system needs supporting instruments for placement, contouring and finishing. The ErgoDenta restorative range includes:
- Composite Filling Instruments (137 products) — pluggers, condensers, anterior and posterior placement instruments, finishers across the full range of working-end shapes.
- Excavators (26 products) — for caries removal and cavosurface margin refinement before matrix placement.

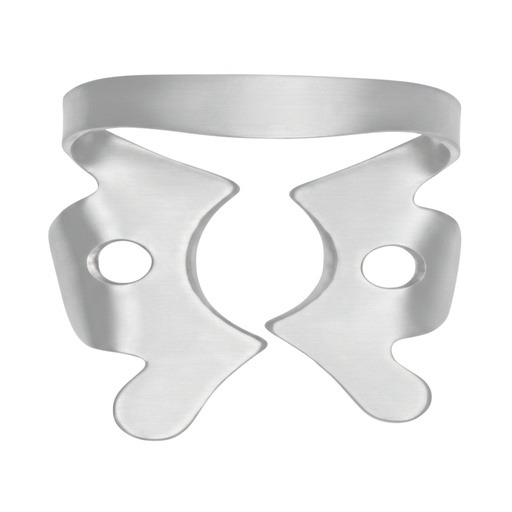

- Rubber Dam Clamps (76 products) + 12 dam instruments — essential isolation for any adhesive procedure.
- Matrix Bands & Retainers (9 products) — covering Tofflemire and sectional approaches.
Three matrix systems — at a glance
| System | Material | Best for | Key advantage |
|---|---|---|---|
| Sectional matrix | Pre-shaped metal + tension ring | Posterior Class II composite | Tight interproximal contact |
| Tofflemire universal | Metal band + retainer | Multi-surface, amalgam, pediatric | Wrap-around stability |
| Celluloid strip | Clear Mylar | Anterior Class III/IV/V composite | Light-cures through the matrix |
Build your composite matrix kit
Sectional matrix kits, Tofflemire retainers, celluloid strips, plus 137 ErgoDenta composite filling instruments and the full rubber dam isolation range.
Browse restoration instruments →Frequently asked questions
Should I use sectional matrix or Tofflemire for posterior composite?
Sectional matrix is the gold standard for routine single-surface posterior Class II composite — it produces tighter interproximal contacts more reliably than Tofflemire. Use Tofflemire for multi-surface (MOD) restorations, amalgam, large defects, or when the wrap-around design provides necessary support. Many practices stock both.
What matrix do I use for anterior composite?
Celluloid (Mylar) strips for Class III, IV and V composite restorations. The clear strip allows light-curing through the matrix, giving a smooth, glossy contoured surface that doesn't need finishing. Pre-cut tabs or roll-form celluloid both work; pre-cut is faster for routine cases.
Why does my posterior composite have an open contact?
Three common causes: (1) the matrix band wasn't tightly adapted to the proximal box — wedge harder. (2) The tension ring wasn't strong enough to separate the teeth — try a stronger ring system. (3) The composite was placed in too large an increment — the polymerisation shrinkage opened the contact. Smaller increments + better adaptation usually solve it.
What's the difference between BiTine, Palodent and Composi-Tight?
All three are sectional matrix systems with similar mechanisms — pre-shaped band held by a tension ring. The differences are in ring shape, separation force, and band contour. Palodent V3 and Composi-Tight 3D Fusion are the most popular current systems. The choice is operator preference; the underlying technique is the same.
Do I need a wedge with a sectional matrix?
Yes — almost always. The wedge seals the cervical margin (preventing composite overhang), stabilises the band against the proximal box, and helps separate the teeth slightly. Wood wedges are softer and more comfortable for the patient; plastic wedges are reusable and more durable. Match the wedge size to the embrasure space.
Can I use a Tofflemire for anterior composite?
Not ideally — the metal Tofflemire band blocks light, so you can't light-cure through it. For anterior Class III, IV or V composite, the celluloid strip is the correct choice. For anterior Class II (between molarised premolars), a sectional or Tofflemire could work, but the celluloid is still preferred for the aesthetic finish.
How tight should I tighten the Tofflemire retainer?
Tight enough that the band is firmly adapted to the tooth without slack, but not so tight that it deforms the band. Test by trying to slide the band against the tooth — it shouldn't move. Over-tightening can stretch the band, ruining its contour and producing a poor restoration.
Should I use rubber dam isolation with composite restorations?
Yes — rubber dam isolation is the single most important factor in long-term composite restoration success. Moisture contamination during bonding is the leading cause of bonding failure. The few extra minutes of dam placement pay back enormously in restoration longevity. The full ErgoDenta dam isolation range supports this workflow.
Do I need a Class V matrix or can I use a celluloid strip?
Either works. A dedicated Class V matrix (a small curved metal or clear matrix held by a custom retainer) gives more consistent results. A celluloid strip held by hand or with a wedge is the simpler alternative. For occasional Class V work, the strip is sufficient; for high-volume cervical restoration, the dedicated retainer is worth the investment.
What composite filling instruments do I need to use a matrix system effectively?
Three categories: (1) placement — anterior pluggers (ball-end, oval) for incremental composite placement, posterior condensers for compression. (2) contouring — small, contoured tipped instruments for shaping the occlusal anatomy. (3) finishing — fine pointed tools for margin refinement. ErgoDenta's 137-piece composite filling range covers all three across multiple handle lines.
